TECHNICALSPECIFICATIONS | |
Source | 54 (12*2 W& 42*3 W) LEDs, 50,000 hours |
Configuration | 12 red(700 mA), 14 green (1,000 mA), 14 blue (1,000 mA), 14 white (1,000mA) |
InstalledOptic(s) | 15° |
BeamAngle | 11° |
FieldAngle | 23° |
Lux @ 5m | 2,409 |
AC VoltageRange | 100~240 V,50/60 Hz (auto-ranging) |
PowerConsumption 120 V, 60 Hz | 179.4 W,1.43 A (operating), 0.75 A (inrush) |
PowerConsumption 230 V, 50 Hz | 178.9 W,0.78 A (operating), 0.81 A (inrush) |
PowerLinking | 7 units@120 V (max.) |
ControlChannels | DMX: 3, 4,5 or 9 |
StandAlone Color Mixing | Yes |
ColorTemperature Presets | Yes:3,200~10,000 K |
Built-inAutomated Programs | Yes |
CustomizablePrograms | Yes |
RecallCustom Programs | Yes |
Dimensions | 9*11.9*10.9 in(230*303*276 mm) |
Weight | 8.5kg |
PowerConnection | Edison toproprietary IP66 input power cord (65 in / 1,651 mm) |
ControlConnection | DMX toproprietary IP66 input cable (6.5 in / 165 mm) |
Certification | CE,ETLc |
Environment | IP66,outdoor/wet, with pressure equalizing M12 Gore. valve |
Control | N/A |
Optics | 30° |
Cabling | 16.4 ft (5m) signal extension, 16.4 ft (5 m) power extension |
Protectionrating | Ip65 |
Feature: | |

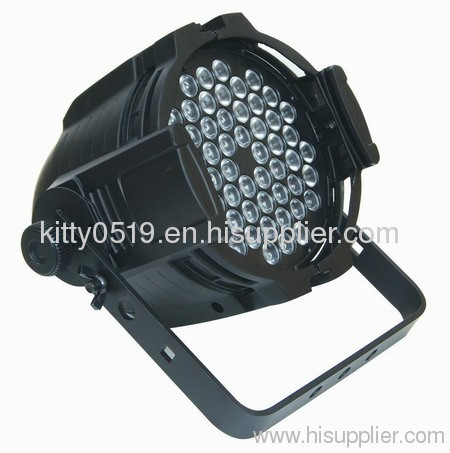

having double DMX signal cable, double power cable@Double handle, canstand-alone or hanged on Body divided into two parts, unique design, alloyaluminum shell, the average service life of LEDs reach 100000 hours adopting theDigital Display as its operating interface,Unique optics design system,low powerconsumption,super luminance,rich and splendid color super frequency(64KHz)dimmertechnology, stable performance,no flicker while dimmer |
